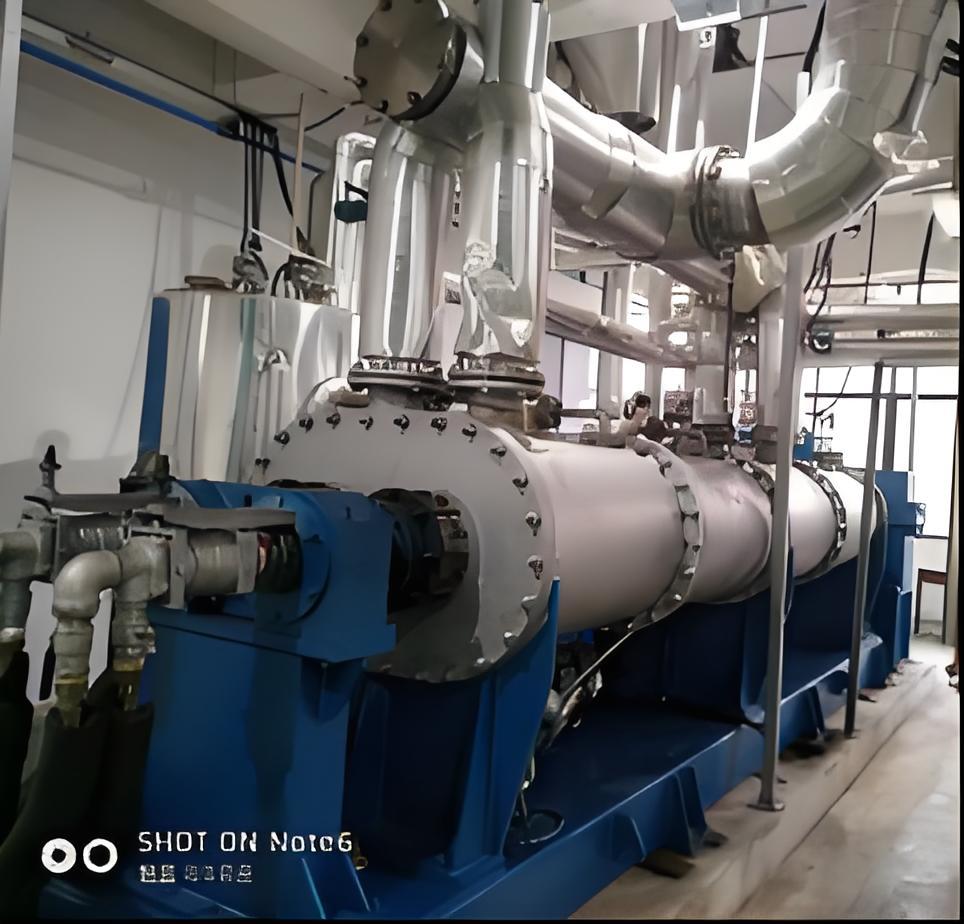

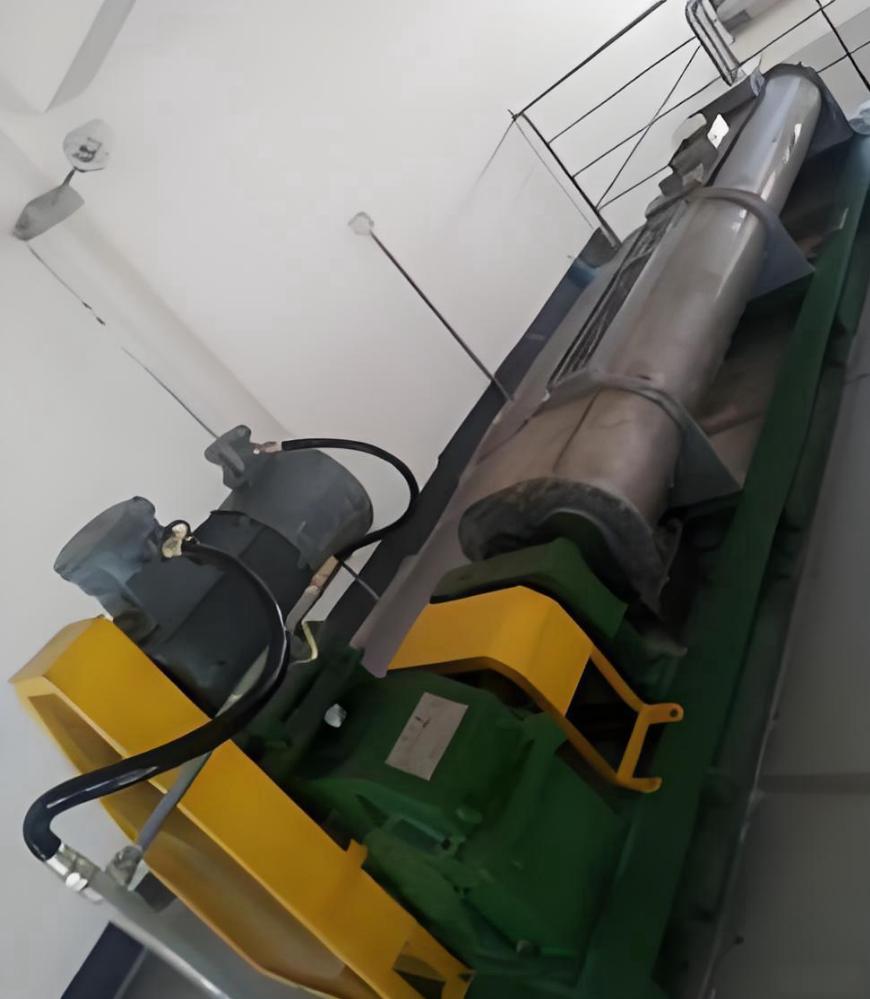

Twin-shaft kneading reactors

Our twin-shaft kneading reactor is equipped with shafts that have high torque. These shafts can rotate in the same direction or in opposite directions, and are equipped with intermeshing mixing components to achieve optimal performance.

■High-torque shaft rotates in same/opposite direction

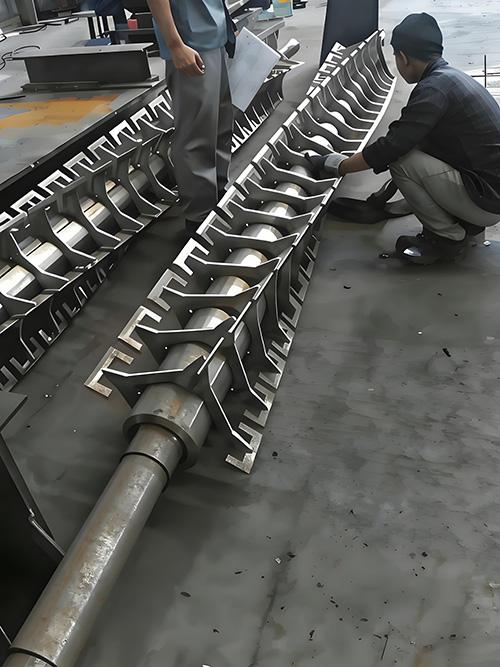

■Intermeshing kneading elements create intense surface renewal
■Maintain a low shear rate - suitable for materials that are prone to damage
■Through innovative component design, an almost 100% self-cleaning function has been achieved.

Compared with single-shaft equipment, the twin-shaft kneading reactor has significant advantages in core operational performance, which are specifically manifested in the following three aspects:

■More Efficient Mixing & Kneading
■Superior Self-Cleaning Ability
■More efficient renewal of boundary layers
The twin-shaft kneading reactor has been successfully applied in numerous industrial-scale production processes, covering but not limited to the following aspects:
■Crystallization
By achieving uniform mixing, the size and purity of the crystals can be controlled, thereby obtaining high-quality products.
■Drying
Efficiently remove moisture from powders and slurry.
■Polycondensation reaction
Optimize molecular weight: Produce uniform and high-purity polymers.
■Dissolution
Accelerate the solid-liquid mixing speed: Save time and avoid imbalance phenomena.
■Sublimation
Achieve an efficient transformation from pure solid state to gaseous state.
■Other
Adapts to custom processes with flexible parameters.

Typical design specifications

■ Volume: 3-10,000L
■ Operating pressure:0.001-10.0bar（absolute pressure)
■ Operating temperature:-100 - +400°C
■ Operating Mode: Batch or Continuous
■ Installed Power: up to 1.5MW
■ Torque: Up to 500kNm
■ Drive: Hydraulic drive or electric motor drive, with or without frequency converter
■ Shaft Seal: Stuffing box+ Packing seal or mechanical seal
■ Product-wetted Materials: Carbon steel, Austenitic/duplex stainless steels, Ni-Cr-Mo alloy, Titanium, or other materials required in the process industry

We will be glad to help you! Please contact us
