Pilot kneading reactors

During the process of new product development, the testing stage is of great significance, and different-sized kneading reactors can provide strong support for this process:

Laboratory- scale Kneader Reactors

Laboratory-grade equipment has a capacity of approximately 3 liters and can be put into use at any time, which significantly accelerates the research and the development progress. Its core value lies in the ability to be able to promptly promote the implementation and experimentation of innovative ideas, verify their feasibility and assist clients in clarifying the correct direction at the early stage of development, thereby significantly reducing costs and time.

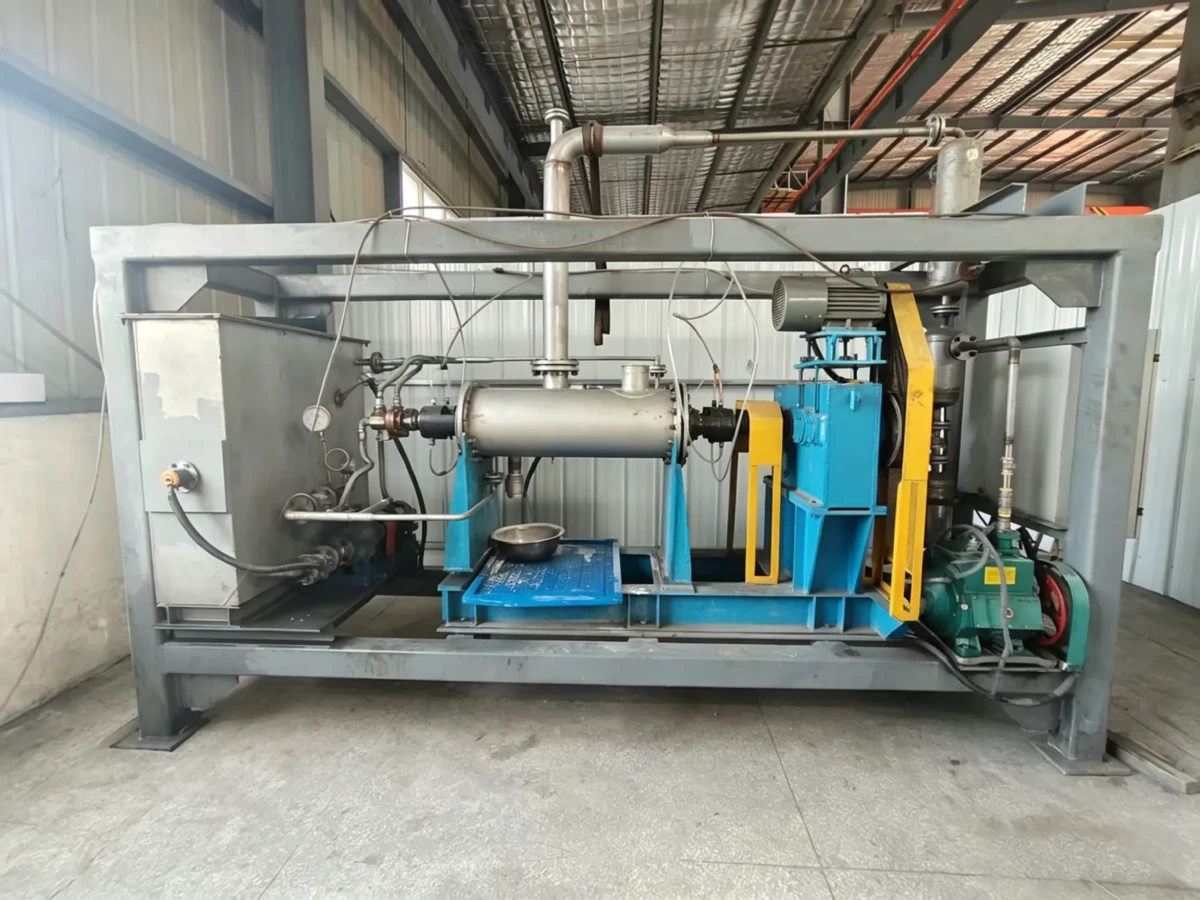

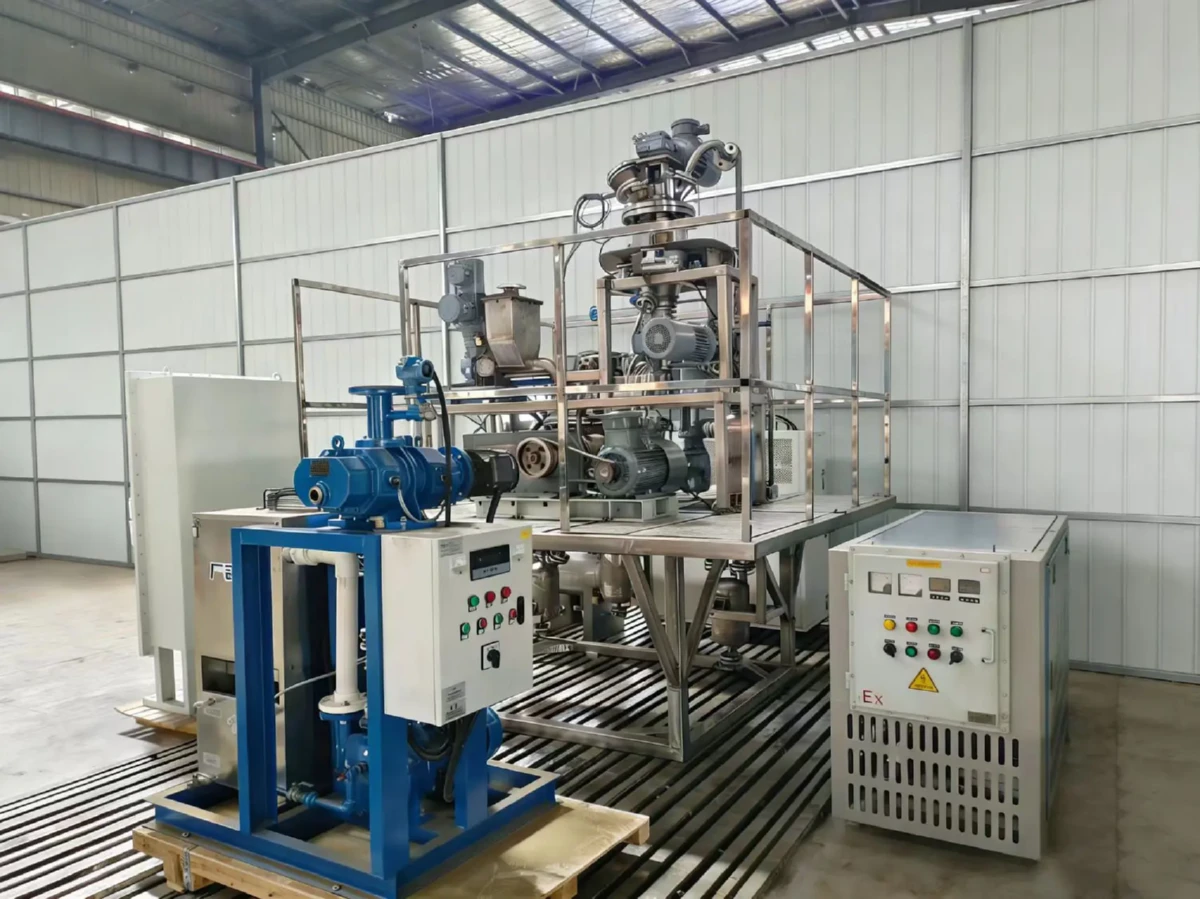

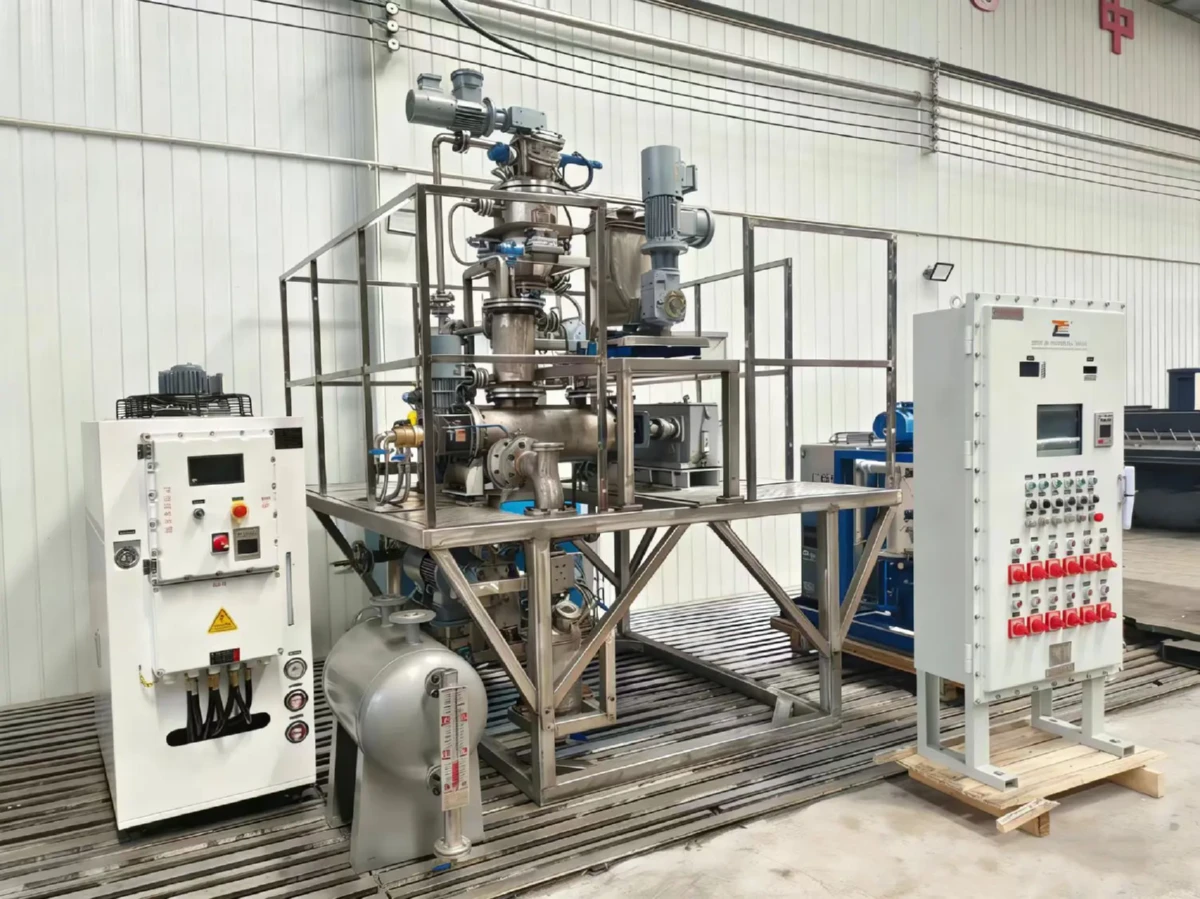

Pilot Plant-scale Kneader Reactors

To further test and confirm the industrial maturity of the new product and new process, the pilot plant can adopt a customized pilot-scale kneading reactor.
The design of this equipment will integrate all the achievements from the previous development process, ensuring that the test results can effectively align with the requirement of industrialization.

Typical design specifications
■Volume: 3-180Liters
■Operating pressure:0.001-16.0bar（absolute pressure)
■Operating temperature: -20... +400°C
■Operating Mode: Batch or Continuous
■Drive: Hydraulic drive or motor drive
( with or without frequency converter)
■Shaft Seal: Packing seal or mechanical seal
■Product-wetted Materials: Carbon steel, Austenitic stainless steels, duplex stainless steel,Ni-Cr-Mo alloy, Titanium, or other materials required for industry use

We will be glad to help you! Please contact us
